Semi automatic pallet wrapper with mechanical pre-stretch and digital controls
981HP & LP digitally controlled - best value anywhere, lower cost; simply the best avalible for the money.
Easy to use and understand front control panel
- Top Wrap Count
- Bottom Wrap Count
- Pallet Wrap Height
- On/Off Switch
- Emergency Stop Switch
- Start/Stop Switch
- Manual/Automatic Mode
- Manual Carriage Control

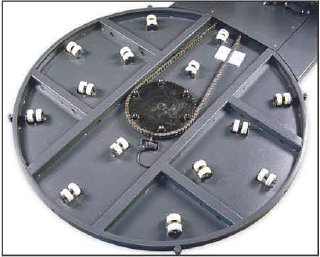

Heavy Duty Chain Drive on turntable with 12 sets of double roller turntable sutports.

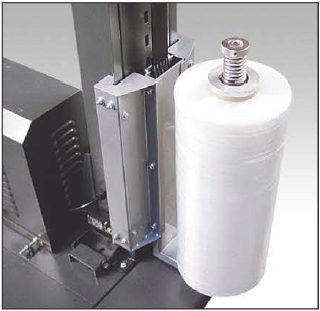

Utilizing 20" machine stretch film the mechanical brake stretch provides for increased film yields of up to 125%.
| Excel Packaging -981HP | Excel Packaging -981HP-SS | Excel Packaging -981LP | Excel Packaging -981LP-SS |
| Machine Dimensions | 96 L x 58 W x 102 H |
| Maximum Load Size | 48 L x 48 W x 85 H |
| Maximum Load Weight | 3,000 lb. Dynamic |
| Crated Size | 120 L x 62 W x 30 H |
| Estimated Shipping Weight | 1,200 lbs. |
| Turntable | 58 diameter |
| Turntable Drive | Fixed 10RPM |
| Pre-stretch | Mechanical Break |
| Turntable Drive Method | Heavy duty chain drive |
| Turntable Sutport | Heavy Duty Delrin Rollers w/Sealed |
| Bearings | very quiet |
| Carriage Elevator | Fixed |
| Controls | Omron Relays and Inverters |
| Forklift | Portable |
| Alignment | Positive |
| Warranty | 3 years on all components |
| CE Approved | Exceeds OHSA Safety Standards |
| Power | 110V/10Amps |
