Herbold NSA Approved High Security Disintegrator 35/42C

View the Department of Defense Manual Data Destruction Number 5200.01, Volume 3 for Disintegrators on Page 44. Signed by Under Secretary of Defense for Intelligence.

Five different models to choose from! Choose a high security disintegrator based on your electricity! Lead time is 4 weeks after receipt of order.

View the NSA/CSS Evaluated Products List for High Security Disintegrators
View the Official NSA/CSS Letter Approval Herbold 35/42C Disintegrator

View Herbold 35/42C Disintegrator Video This Herbold 35/42C video lasts about 5 minutes and 46 seconds. File Size is approximately: 48 MB

The new Herbold 35/42c Disintegrator NSA/CSS specification 02-02 for High Security Disintegrators, and it has been approved for the secure destruction of paper, punched key tape and optical media for rates up to 750 pounds per hour.This unit features adjustable rotor knives which keep a constant distance from the screen, improves output rate and reduces the volume of fines/dust. With 3/4" of knife regrind, this unit provides twice the amount of resharpening than it's competitive units. An outside knife jig provides safe and easy access for setting knives, thus reducing maintenance time. Routine service and inspection is also made safe and easy with an integrated opening jack.

Electrical Disconnect Information:

208 Volt, 3 phase, 60Hz
Minimum branch circuit size @ 208 volts 105 amps, 200 amp disconnect required, it is possible to use a 100 amp disconnect if allowed

230 Volt, 3 phase, 60Hz
Minimum branch circuit size @ 230 volts 95 amps, 100 amp disconnect required

460 Volt, 3 phase, 60Hz
Minimum branch circuit size @ 460 volts 50 amps, 60 amp disconnect required

220 Volt, 3 phase, 50Hz
Minimum branch circuit size @ 220 volts 95 amps, 100 amp disconnect required

380 Volt, 3 phase, 50Hz
Minimum branch circuit size @ 380 volts 50 amps, 60 amp disconnect required

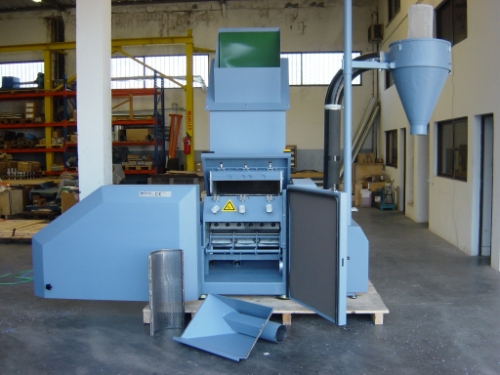

		Front View of Herbold Disintegrator Model 35/42c

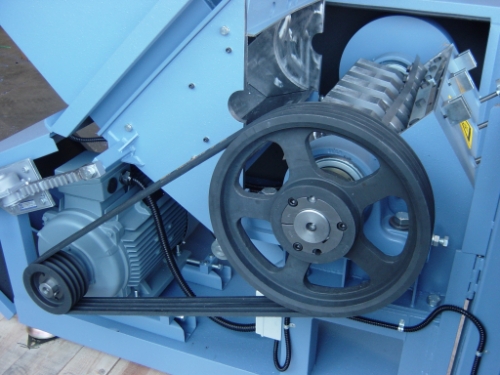

		View of belt driven gear

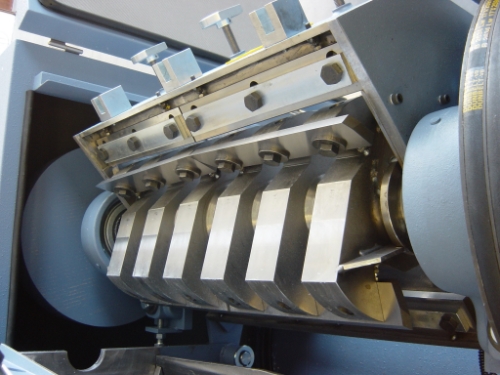

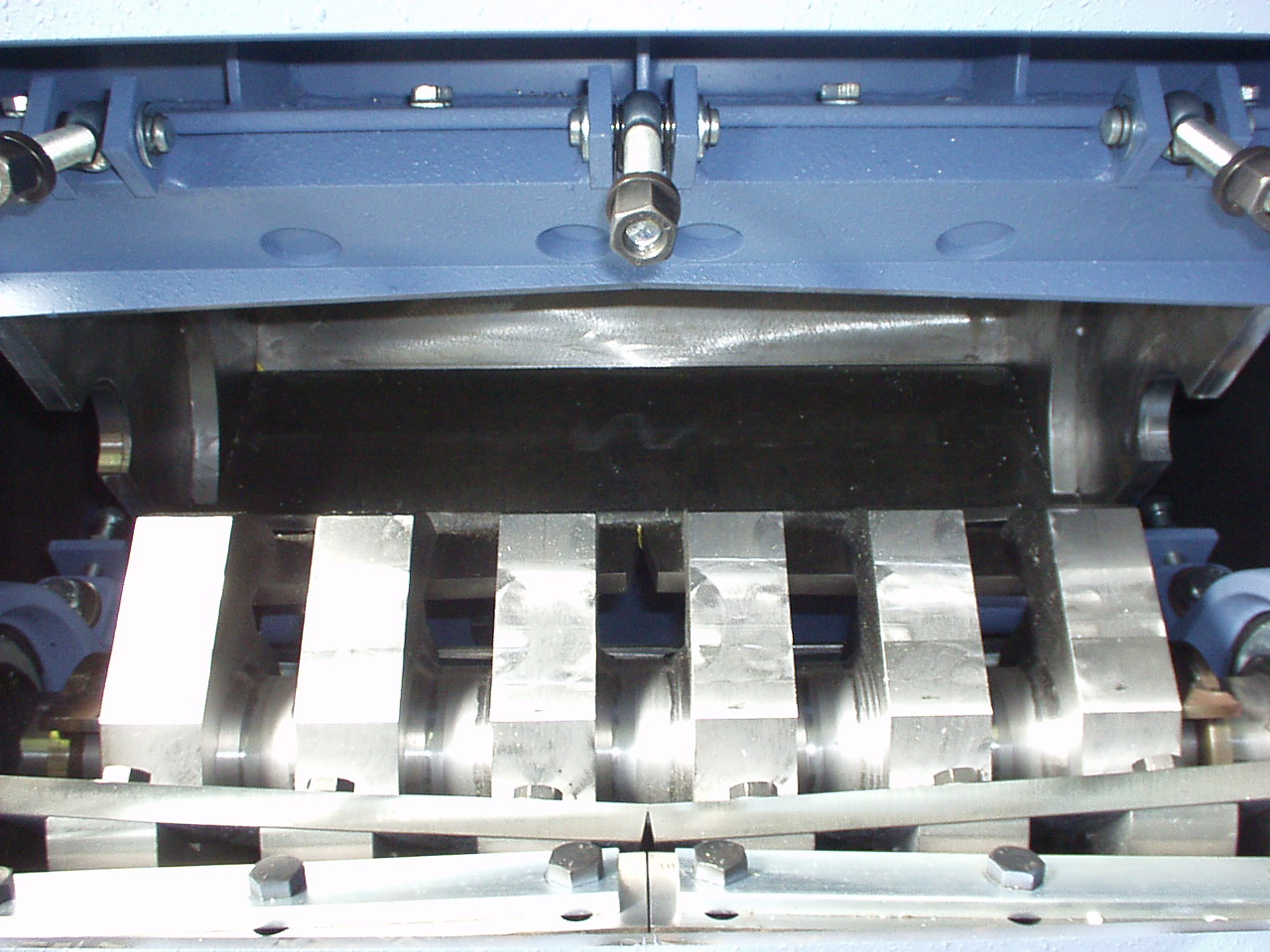

		Herbold Disintegrator Cutting Blades
		Herbold Disintegrator Knife Jig Knife jig allows all adjustments to be made quickly and easily outside of the granulator.

Benefits of Herbold Disintegrator Models 35/42 over competition

		Knife Value Herbold Disintegrator knives have twice the amount of sharpening than competition. Other units offer 5/16"- 3/8" of a inch regrind capability whereas the Herbold Disintegrator knives offer 3/4" of grinding surface. So the other brands may give you a spare set with the machine but with the knives in the unit and the Herbold spare set its like having 4 sets of knives - big value!
		Feed Hopper Conversion Herbold Disintegrator's feed hopper can be converted from hand feed to conveyor feed with a switch of a supplied feed chute making the unit versatile. The competition unit requires a special hopper and sound enclosure requiring lots of money and new pieces.
		Adjustable rotor knives Provides constant distance between the rotating knives and security screen. This reduces dust generation, output as the cutting circle remains the same no matter how many times the knives are sharpened. Competitive units as the knives are sharpened the distance from the security screen grows allowing more build up of material on top of the screen which lowers the rate as the knives are reduced in length and creates more dust because of it.
		Service Access 1) The competitive unit has no access above the cutting rotor. The Herbold 35/42 hinges above the rotor providing full access and again is much safer. 2) These models include a mechanical winch for opening vs. competition that has a manual lifting. The Herbold Disintegrators are more operator/technical friendly and safe.3) All of the Herbold Disintegrator access points have non tamper proof limit switches vs. competition unit does not (it still uses old style push button switches). Again, the non tamper proof limit switches on the Herbold models are more safe.
		Stronger Horsepower The Herbold Disintegrators offer a 3 horsepower air system as standard vs. competition horsepower. That is a big difference!

Features:

• Jig/fixture for knife adjustment: The Herbold Disintegrator knives are adjusted in a fixture outside the machine instead of adjusting inside the units cutting chamber. This shortens the down time as the method cuts knife change in half. It is also much safer by reducing the exposure to the cutting edges of the knives inside the machine as competitive models do.

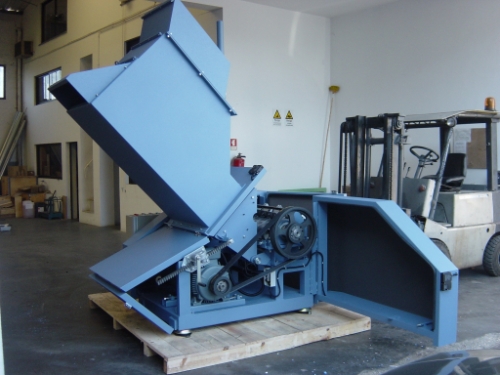

• Clean Out: The Herbold Disintegrator transition slides out, chamber splits at the rotor, and hopper tilts back 100% vs. competition's access of 60%.
• Vibration Isolators: Herbold Disintegrators come equipped with vibration isolators in lieu of casters as standard.
• Exterior Color Finish: Herbold Disintegrators have a beautiful exterior color finish that matches any decor.
• Sound package: In lieu of competition's box enclosure providing better access without moving the machine out of the enclosure you would do on the competition unit. The Herbold 35/42 has a smaller foot print, no installation cost, no heat build up.
  • Integrated sound retention reduces noise and floor space requirements
  • Single voltage operation reduces operation and installation costs
  • Larger size air system - 3hp with twin bag collection and cartridge style filter
  • Open rotor design for better air flow and quieter operation
  • Tamper proof safety switches
  • Rotor end seals and cutting chamber sealing to limit dust leakage
  • Versatile infeed hopper with interchangeable trays for hand or conveyor feeding
  • Built-in vibration isolators in lieu of casters

• Model 35/42c with 30hp
• Air System with 3hp (Twin Bag Collector)
• Sound Package - Integrated
• 6 Blade Cutting System
• Spare Set of Knives
• Spare Case of Bags
• Knife Adjustment Jig

Warranty:

SUCH WARRANTIES ARE IN LIEU OF AND EXCLUDE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED BY OPERATION OF LAW OR OTHERWISE. SELLER MAKES NO WARRANTY OF MERCHANTABILITY AND NO WARRANTY THAT THE MATERIAL SHALL BE FIT FOR ANY PARTICULAR PURPOSE. Any claim on account of defective materials or for any other cause whatsoever shall conclusively be deemed waived by Purchaser unless written notice thereof is given to Seller promptly after discovery of the alleged defect, and in any event no later than twelve months from shipment. Seller shall have the right either to replace or repair any defective materials, to refund the purchase price upon return of the material or to grant a reasonable allowance on account of such defects, and Seller's liability and Purchaser's exclusive remedy for defective materials shall be limited solely to replacement, repair, refund or allowance as Seller may elect. This warranty will not apply if damages are caused by repairs made by anyone other than the Seller without prior authorization from the Seller, lead seals have been removed, specified checks not having been made, parts subject to normal wear and tear, such as V-belts, bearings, knives, screens etc., improper or inadequate maintenance or improper use. Seller will not be liable for goods supplied by its subcontractors but agrees to assign to Purchaser all warranties of such subcontractors to Seller or enforce such warranties on Purchaser's behalf.
