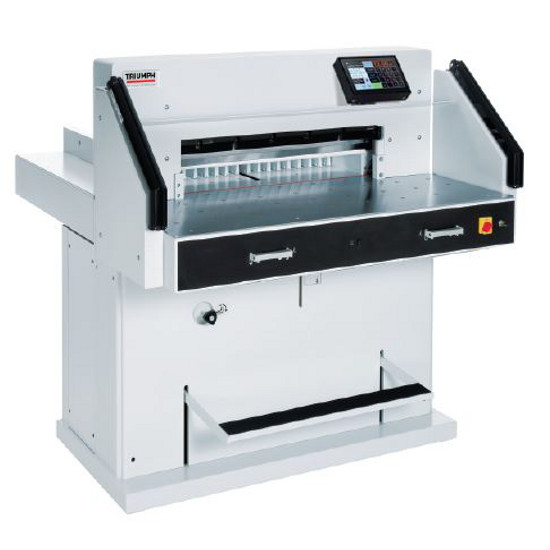

Triumph 7260 Automatic-Programmable 28" Paper Cutter with Safety Light Beams

Triumph 7260 28" Programmable Cutter features a hydraulic clamp, power back gauge, touchpad control module, and IR safety light beams on front table.

Comprehensive SCS safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

Additional Features

• Hydraulic clamp drive.
• Foot pedal for pre-clamping
• Electric back gauge drive with control module for easy programming.
• Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
• Stores 99 programs with up to 99 steps in each (up to 9 repeat cuts can be integrated as a single step).
• Pre-programmed for standard paper sizes.
• Memory keys for repeat cuts (manual) and quick setting of frequently needed measurements.
• Automatic SET function for reference measurement and paper EJECT function with and without program mode.
• DELETE and INSERT mode for correcting and modifying programs.
• Automatic correction in case of back gauge displacement.
• Push buttons for fast back gauge movement (forward and reverse).
• Integrated calculator.
• Self-diagnostic system with error indication on display.
• Electric blade drive with solid steel carrier and adjustable guides.
• Electronic hand wheel with variable speed control for manual back gauge setting.
• Clamp pressure is fully adjustable between 550 and 4,400 psi.
• False clamp plate with optical indicator.
• Bright, LED optical cutting line.
• Stainless steel work surface.
• Standard air tables (front and rear).
• High quality, German HSS blade.
• Precision swing cut blade movement.
• All-metal construction.
• Includes easy-access tool holder and paper blocking tool.
• Optional side tables increase work surface.
• UL and C UL approved.
