Bramidan X6030 Commercial Level Cardboard Box Vertical Baler 208/230/480 Volt 3 Phase


Price: Call Toll-Free (800) 203-0233 for Pricing

Availability: In Stock - Call for Price

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: x6030   Brand Name:Bramidan   Manufacturer Part Number: x6030

With heavy scissor cylinders, the X6030 LP is ideal for low ceiling applications where a full mill-sized bale is needed.

Suggested Uses:

  • Grocery
  • Manufacturing
  • Universities
  • Logistics
  • Big Box Stores
  • Distribution Centers
  • Companies with more than 2 dumpsters
  • Low profile 60" baler
    The X6030 LP is low profile machine that fits installed under an 8 foot ceiling, and still makes a full 60" bale.

    Heavy duty and high pressure
    With 88,000 lbs of pressure, an almost fully penetrating press plate and a heavy duty frame, this machine can handle PET, alu cans as well as cardboard and stretch wrap.

    X6030 LP - mill-sized baler for cardboard and plastics:

  • Full 60" bale
  • Less than 92" installed height
  • Front tie off - can be placed up against the wall or inside rack
  • Can be used for cardboard, stretch wrap, PET, alu cans etc.
  • Quiet Power Unit -- noise level like an office printer
  • Compliant with ANSI and UL regulations
  • Bale Size:
    30" depth x 60" width x 48" height
    Feed Opening:
    60" width x 21" height

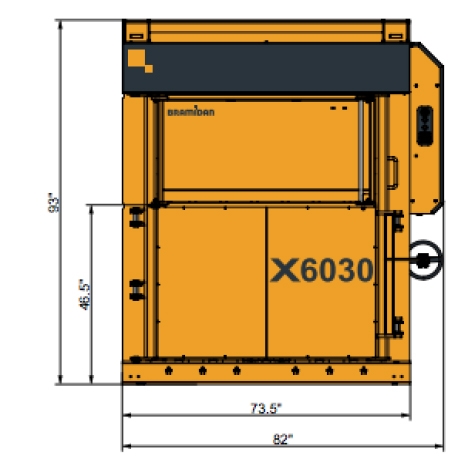

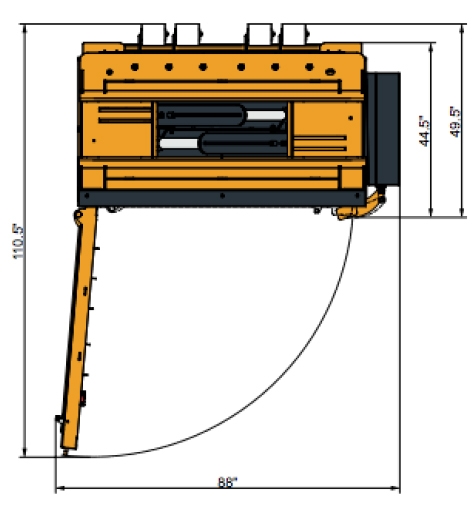

    Depth:
    50"
    Width:
    82"
    Height:
    93"
    Weight:
    4850 pounds
    Acceptable Material:
    Cardboard, Paper, Plastic Foil
    Bale Eject:
    Automatic
    Bale Weight (Cardboard):
    800-1200 pounds
    Bale Weight (Plastic Foil):
    850-1300 pounds
    Full Bale Light:
    Yes
    Number of Ties:
    6 Ties
    Press Force:
    88,200 pounds
    Stroke:
    93"
    Type of tying:
    Twine/Steel Wire
    Cycle Time:
    40 seconds
    Electrical:
    208V, 230V or 480V, 3 Phase, 60 hz
    Motor:
    5.5 horsepower
    Noise Level (dB):
    62-64 dB
